The Synopsys ARC-V™ RHX-100 series processors feature a dual-issue, 32-bit superscalar architecture for use in applications where real-time performance is required. The cores offer outstanding performance with a small area footprint and low power consumption.

The ARC-V RHX-100 processors are based on the RISC-V instruction set architecture (ISA). The processors feature a 40-bit physical address space and can directly address memories up to 4.5 Petabytes (4.5x1015) in size. For applications requiring higher performance, the multi-core RHX-105 and RHX-105V are available with support for up to 16 CPU cores and up to 16 hardware accelerators in the processor cluster. RISC-V vector extensions (RVV) are available in the RX-100V (single core) and RHX-105V (multi-core) processors.

The ARC-V RHX-100 features level 1 (L1) instruction and data cache and close coupled memory (CCM) and is optimized for use in high-performance real-time embedded applications.

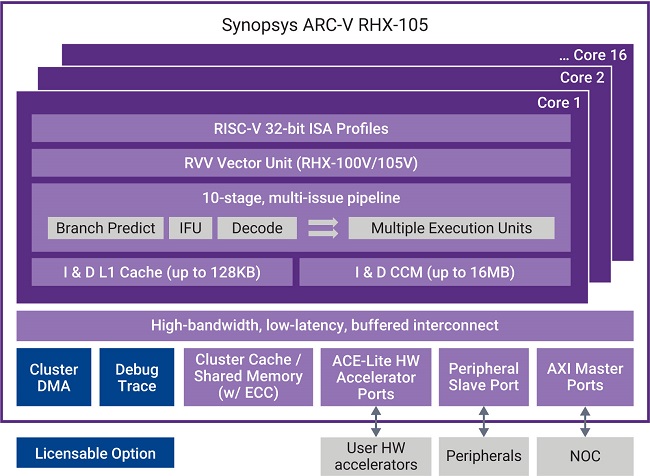

Synopsys ARC-V RHX-105 Block Diagram

Synopsys ARC-V RHX-100 Series Datasheet

Highlights

Dual-issue, 32-bit processors for high-performance real-time applications
Multicore Processor versions with up to 16 CPU cores and up to 16 hardware accelerators
Based on the RISC-V ISA, leveraging standard 32-bit protocols (and extensions)
Real-time enhanced virtualization
High degree of configurability
Support for custom instructions
Support for up to 16 MB of closely coupled memory and direct mapping of peripherals
Optional MMU with hardware page table walk and up to 16 MB page sizes
Optional support for RISC-V defined vector extensions (RVV)
Real-time Trace (RTT) provides real-time trace debugging features
