Synopsys ARC-V RPX-100 Processor IP
The Synopsys ARC-V™ RPX-100 series processors feature a dual-issue, 64-bit superscalar architecture for use in high performance applications where performance efficiency is required. The cores offer outstanding performance delivering minimal power consumption.
The ARC-V RPX-100 processors are based on the RISC-V instruction set architecture (ISA). The processors feature a physical address space defined by the RISC-V Sv39 MMU. For applications requiring higher performance, the multi-core RPX-105 & RPX-105V are available with up to 16 CPU cores and up to 16 hardware accelerators in the processor cluster. RISC-V vector extensions (RVV) are available in the RPX-100V (single core) and RPX-105V (multi-core) processors.
The ARC-V RPX-100 features level 1 (L1) instruction and data cache optimized for use in performance efficient applications. Each core also supports up to 128KB of private L2 cache. The multi-core cluster supports an additional 16MB of cluster shared cache (L3).

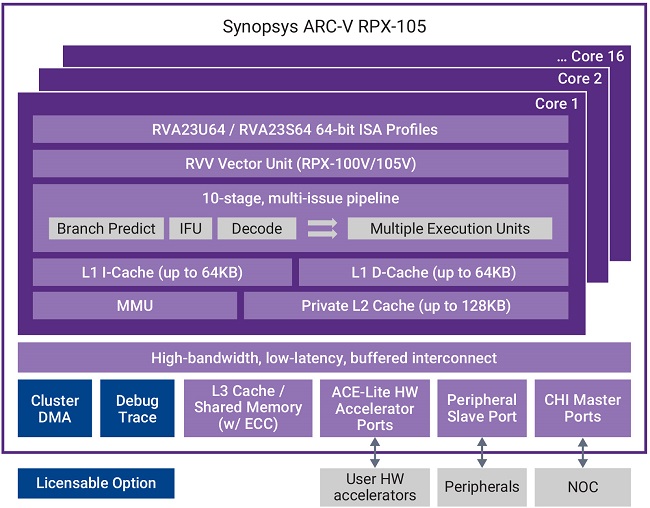

Synopsys ARC-V RPX-105 Block Diagram
Synopsys ARC-V RPX-100 Series Datasheet
- Dual-issue, 64-bit processors for performance efficient host applications
- Multicore Processor versions with up to 16 CPU cores and up to 16 hardware accelerators
- Based on the RISC-V ISA, leveraging standard 64-bit protocols (and extensions)
- Hardware virtualization support
- Support for custom instructions
- Support for up to 64KB of L1 instruction and data cache
- Up to 128KB of unified private L2 cache per core
- Up to 16MB of shared cluster cache (L3)
- RISC-V Sv39 MMU with hardware page table walk and up to 4 MB page sizes
- Optional support for RISC-V defined vector extensions (RVV)
- Optional ARC Trace Interface support provides real-time trace debugging features
