Virtual Prototyping Tools Speed Up Software Development

Over the last 10 years, the use of software across a gamut of products and applications has increased exponentially — and this trend shows no signs of slowing down. Everyday consumer staples such as cellphones, TVs, and smart home appliances already rely heavily on software to operate and provide us with many functions we love and use daily. This is also true for automotive applications. In fact, modern vehicles contain up to 150 million lines of code, and with an expected annual growth of automotive software of over 15% to over $100B by 2030, we are now clearly in the software-defined, software-first era.

As software continues to become a dominant component in many products, its quality, performance, and safety requirements will only continue to increase. Developers are facing many challenges to deliver efficient software that can meet these demands, and numerous methodologies have emerged in recent years to help streamline the design process. While certainly not a new concept, physical prototyping (a simulation of how a product will work) has been a key cornerstone of DevOps teams to gauge software functionality. But, as with all technologies, it’s quickly becoming outdated and in need of more advanced capabilities attuned to today’s fast-paced environment.

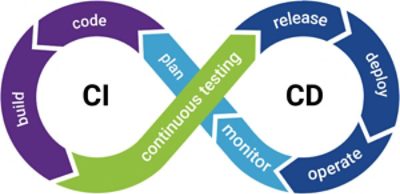

Read on to learn more about the history of physical prototyping, the emergence of virtual prototyping, its synergy with continuous integration and development setups, and the many benefits these disciplines provide when combined.

Physical Prototyping: Out with the Old, In with the New

Before virtual prototyping tools came into existence, embedded software developers had to wait until silicon designs were completed to integrate and test their code on the system’s physical prototypes in labs. This traditional prototyping method incurred significant delays in finalizing products as teams had to work around the clock to debug and examine their code’s performance after waiting for the physical prototypes to arrive.

Beyond the slow time-to-market (TTM), this method was also expensive and highly inconvenient. For one, replicating prototypes across a large software team came with a hefty price tag. Secondly, these systems had to be continuously maintained and managed, which often meant programmers would need to work in shifts to maximize hardware utilization. The emergence of highly networked systems alleviated some of this inconvenience by allowing programmers to work from their offices instead of the lab, but costs remained the same.

As with most technologies, embedded processors were also constantly evolving, straying away from parts within a system to full-on system-on-chip (SoC) devices. This marked a turning point in the way prototyping was carried out. Since custom chips can take many months to design and produce and physical prototypes can’t be built until the chips arrive, physical prototyping eventually became obsolete; projects were simply taking too long and costing too much.

Cue the emergence of virtual prototyping.

Virtual Prototyping Tools Enable Pre-Silicon Testing and Debugging

Virtual prototyping emerged as a response to this industry need. A pre-silicon platform for embedded programmers to develop, integrate, test, and debug their codes became critical in addressing TTM and expense issues. Consisting of abstract software simulation models for SoC and hardware systems, virtual prototyping has provided programmers with the unique ability to replace hardware with software-equivalent models to enable earlier software development.

In essence, virtual prototypes are fully functional software models of complete systems that can execute embedded software code. They contain fast instruction set simulators (ISSs) that can execute the same code that will run in finalized production systems and enable a myriad of benefits, including:

• Interaction with both virtual and real-world input/output (I/O) devices.
• Better testing of abnormal conditions, including injecting virtual faults that could potentially cause damage to the system’s hardware.
• Early detection of inconsistencies between the design and the embedded code, thus reducing the chance of chip malfunctions.
• Deployment across dispersed software teams, eliminating costs associated with building and maintaining physical prototypes.

However, one of their key benefits is a virtual prototype’s ability to speed up TTM considerably. Since virtual prototypes don’t need many implementation details, they can be developed simultaneously with the register-transfer-level (RTL) hardware design for the SoC, allowing a shift-left approach that positively impacts the project schedule.
