CXL Design V&V with Synopsys Protocol Continuum

Data is the new fuel powering critical use-cases for cloud /edge computing, and advances in AI. All aspects of data handling – gathering, storing, moving, processing, and dispersing – pose unique design implementation and verification challenges. The need for heterogenous computing has given exponential rise to application specific accelerators, pushing the industry to come up with a solution for efficient data handling and resource utilization. CXL is a processor interconnect protocol designed to support high bandwidth, low-latency interface from CPU to workload accelerators, maintaining memory coherency across heterogeneous devices, while addressing security needs of the user.

Verification and Validation Challenges around CXL Systems

CXL standard presents a blend of peripheral interconnect, memory, coherency, and security domains. Below are the important points to consider when approaching verification of CXL systems.

1. Need for System Level Compliance: Since it’s an emerging standard with heterogenous components from multiple vendors, adherence of all the system components is necessary for the setup to be functional.
2. System Level Coverage at Pre-silicon: CXL reuses Gen5 infrastructure with special handling (CXL cache/mem semantics) for upstream-downstream memory accesses for CPU-Device pairs generating the need to cover realistic memory coherency scenarios in a system setup.
3. Shifting left Post-silicon Validation: Limited motherboards and hardware devices ready for production in post-silicon, narrow the scope of post-silicon validation. Pre-silicon to Post-silicon sanity using the real hardware devices early is essential to avoid silicon re-spin

Synopsys Advantage

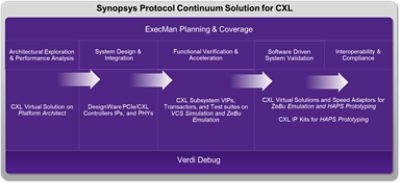

Fusion of domain expertise is key for realizing CXL systems & Synopsys leverages several decades of expertise to provide a comprehensive offering for enabling development of CXL based designs for its users.  CXL Protocol Continuum from Synopsys – is a comprehensive and complete solution spanning architecture exploration, system design and implementation, functional verification and acceleration, software development, system validation, compliance testing, and interoperability of complete system.

Synopsys has a strong participation in the CXL Consortium, and has been a leading partner in driving the adoption, contribution to CXL standards to enable a wide variety of system-based applications and giving early advantage for Interop testing of latest of the CXL-CV compliance tests on our continuum solutions. Synopsys is a leading provider of DesignWare CXL IPs and PHYs, including CXL 2.0 Integrity and Data Encryption (IDE) Security IP Module compliant with the defined CXL 2.0 IDE specification.
